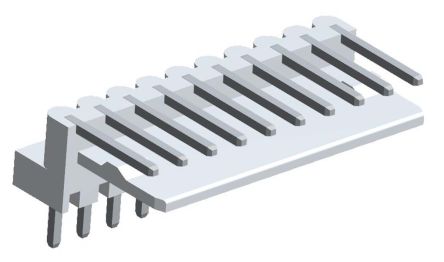

22-05-1102

Specifications

Reliability

COMMERCIAL

Glow Wire Compliant

Non-compliant

Contact Materials

Brass

Terminal

Solder

Iec Conformance

NO

Mil Conformance

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Fastening Type

Friction

Depth

13.3mm

Contact Lengthmating

7.493mm

Lead Length

3.4mm

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Montaj

Through Hole

Mating Post Length

7.5mm

Bodyshell Style

RECEPTACLE

Reference Standard

UL

Housing Material

Nylon

Body Breadth

0.236 inch

Contact Plating

Tin

Polarization Key

POLARIZED HOUSING

RoHS Durumu

RoHS Compliant

Renk

Natural

Min. Çalışma Sıcaklığı

-40°C

Akım Değeri

3A

Halogen Free

Low Halogen

Kurşunsuz

Lead Free

Total Number Of Contacts

10

Contact Resistance

20mOhm

Pitch

2.5mm

Maks. Çalışma Sıcaklığı

105°C

Voltage Rated Ac

250V

Voltage Rated Dc

250V

Lead Pitch

2.5mm

Number Of Conductors

ONE

Contact Style

RND PIN-SKT

Contact Gender

Male

Reach Svhc

Unknown

Number Of Poles

10
