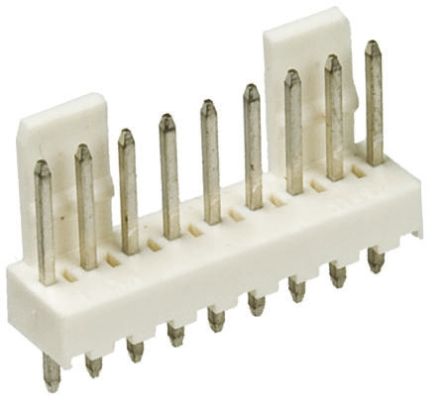

22-04-1091

Specifications

Contact Style

SQ PIN-SKT

Durability

30 Cycles

Voltage Rated Dc

250V

Plating Thickness

200μin

Insulation Resistance

1GOhm

Number Of Conductors

ONE

Lead Pitch

2.5mm

Pitch

2.5mm

Ambalaj

Bulk

Maks. Çalışma Sıcaklığı

105°C

Voltage Rated Ac

250V

Kurşunsuz

Lead Free

Total Number Of Contacts

9

Contact Resistance

20mOhm

Number Of Pcb Rows

1

Gender

Male

Rated Current Signal

3A

Kurşunsuz Kodu

yes

Parça Durumu

Active

Mixed Contacts

NO

Voltage Working

250V

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Male Pin

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Number Of Poles

9

Reach Svhc

Unknown

Hole Diameter

1.19 mm

Orientation

Vertical

Yayın Yılı

2000

Uzunluk

22mm

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Fastening Type

Friction

Depth

4.9mm

Contact Lengthmating

7.493mm

Mil Conformance

NO

Filter Feature

NO

Max Voltage Rating Ac

250V

Glow Wire Compliant

Non-compliant
