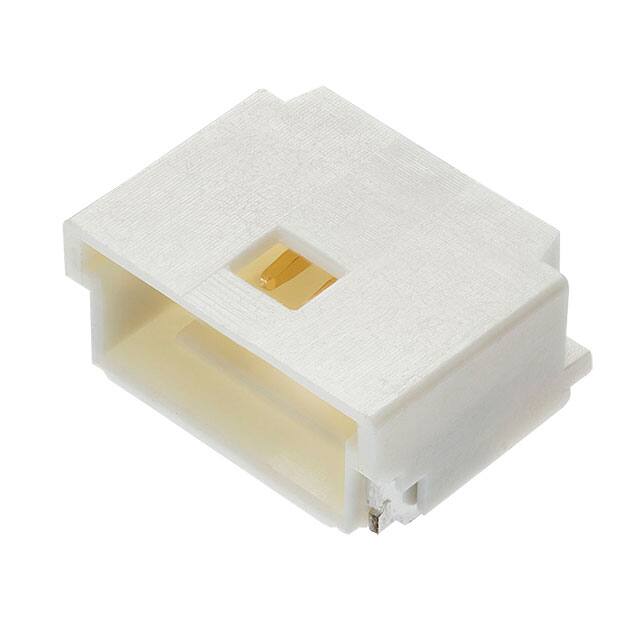

2023960207

Specifications

Number Of Positions Loaded

All

Pozisyon Sayısı

2

Ambalaj

Tape & Reel (TR)

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Nominal Gerilim

50V

Contact Type

Male Pin

ECCN Kodu

EAR99

Total Number Of Contacts

2

Contact Shape

Square

Style

Board to Cable/Wire

Iec Conformance

NO

Pitch Mating

0.039 1.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Terminal

Solder

Fastening Type

Latch Holder

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Additional Feature

PICO-CLASP, POLARIZED

Sıra Sayısı

1

Fabrika Tedarik Süresi

8 Weeks

Din Conformance

NO

RoHS Durumu

ROHS3 Compliant

Seri

Pico-Clasp 202396

Çalışma Sıcaklığı

-40°C~105°C

Connector Type

Header

Contact Finish Mating

Gold

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Industrial, Medical

Contact Finish Thickness Mating

3.90μin 0.099μm

Insulation Color

Natural

Contact Materials

Phosphor Bronze

Insulation Height

0.126 3.20mm

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Current Rating Amps

Varies by WireGAuge

Montaj Tipi

Surface Mount, Right Angle
