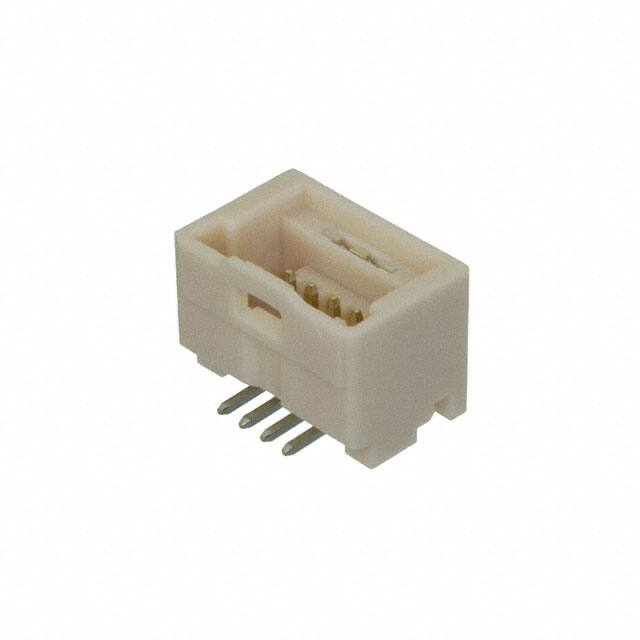

2016480040

Specifications

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.059 1.50mm

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

39.4μin 1.00μm

Current Rating Amps

Varies by WireGAuge

Pozisyon Sayısı

4

Style

Board to Cable/Wire

Terminal

Solder

Fastening Type

Latch Holder

Montaj Tipi

Surface Mount

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

General Purpose

Nominal Gerilim

100V

Özellikler

Pick and Place, Solder Retention

Seri

Spot-On 1.5 201648

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Sıra Sayısı

1

Connector Type

Header

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

18 Weeks

Ambalaj

Cut Tape (CT)

Insulation Color

Natural

Number Of Positions Loaded

All

Contact Materials

Brass

Insulation Height

0.354 9.00mm
