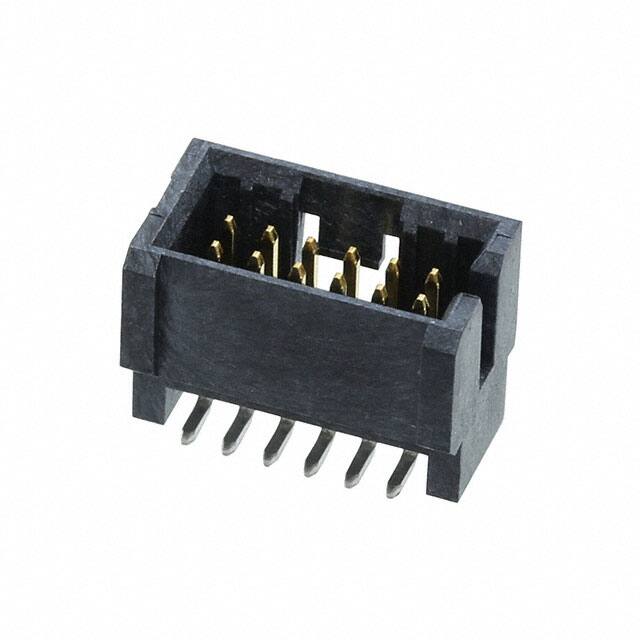

Specifications
- Insulation Height
- 0.280 7.10mm
- Fabrika Tedarik Süresi
- 16 Weeks
- Style
- Board to Board
- Fastening Type
- Latch Holder
- Applications
- Automotive, General Purpose, Telecommunications
- Terminal
- Solder
- Kurşunsuz Kodu
- yes
- Çalışma Sıcaklığı
- -55°C~105°C
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Seri
- Slim-Grid 200989
- Pozisyon Sayısı
- 12
- Montaj Tipi
- Surface Mount
- Material Flammability Rating
- UL94 V-0
- HTS Kodu
- 8536.69.40.40
- Contact Type
- Male Pin
- Contact Shape
- Square
- Contact Materials
- Copper Alloy
- Nominal Gerilim
- 125V
- Insulation Color
- Black
- Ambalaj
- Tube
- Contact Finish Thickness Mating
- 2.00μin 0.051μm
- Contact Finish Post
- Tin
- ECCN Kodu
- EAR99
- Insulation Materials
- Liquid Crystal Polymer (LCP), Glass Filled
- Number Of Positions Loaded
- All
- Pitch Mating
- 0.050 1.27mm
- Row Spacing Mating
- 0.050 (1.27mm)
- Shrouding
- Shrouded - 4 Wall
- Connector Type
- Header
- Parça Durumu
- Active
- Sıra Sayısı
- 2
- Contact Finish Mating
- Gold
