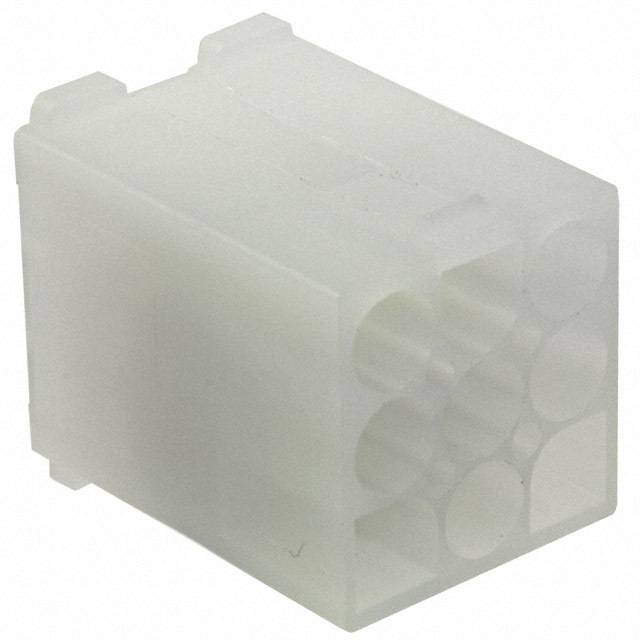

19-09-2099

Specifications

Terminal

Crimp

Sıra Sayısı

3

Mixed Contacts

NO

Shell Material

POLYAMIDE66

Option

GENERAL PURPOSE

Min. Çalışma Sıcaklığı

-40°C

Number Of Conductors

ONE

Akım Değeri

9A

Connector Type

Male or Female, Plug, Socket

Reference Standard

UL, CSA

Mil Conformance

NO

Contact Gender

Male

Contact Finish Mating

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Operating Supply Voltage

600V

Fabrika Tedarik Süresi

7 Weeks

Montaj

Free Hanging, Surface Mount

Empty Shell

YES

Din Conformance

NO

Kurşunsuz Kodu

yes

Depth

30.2mm

Filter Feature

NO

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Contact Materials

NOT SPECIFIED

Maks. Çalışma Sıcaklığı

105°C

Flammability Rating

UL94 V-2

Reach Svhc

Unknown

Yükseklik

850μm

Iec Conformance

NO

Yayın Yılı

2007

Number Of Contacts

9

Glow Wire Compliant

Non-compliant

Genişlik

30.2mm

Fastening Type

Ramp

Current Rating Max

12A

Pitch

6.7mm

Onay Kuruluşu

CSA, TUV, UL

Ambalaj

Bulk
