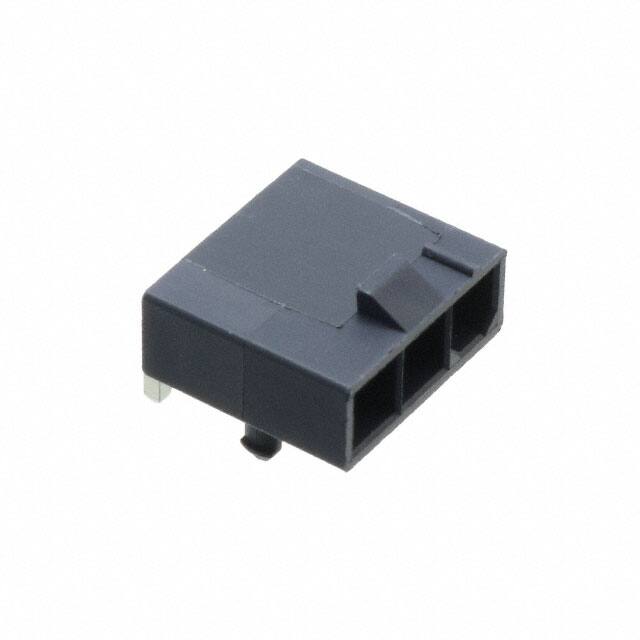

1726480103

Specifications

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Mating

100.0μin 2.54μm

Contact Finish Mating

Tin

Applications

General Purpose, Industrial, Telecommunications

Contact Materials

Brass Alloy

RoHS Durumu

Non-RoHS Compliant

Pitch Mating

0.165 4.20mm

Style

Board to Cable/Wire

Sıra Sayısı

1

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Post

100.0μin 2.54μm

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Fastening Type

Locking Ramp

Yayın Yılı

2014

Number Of Positions Loaded

All

Contact Shape

Square

Insulation Color

Black

Özellikler

Board Lock, Glow Wire Compliant

Connector Type

Header

Pozisyon Sayısı

3

Contact Type

Male Pin

Nominal Gerilim

600V

Seri

Mini-Fit Jr 172648

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.138 3.50mm

Current Rating Amps

Varies by WireGAuge

Insulation Height

0.213 5.40mm

Kurşunsuz Kodu

no

Parça Durumu

Active

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bag

Fabrika Tedarik Süresi

13 Weeks

Material Flammability Rating

UL94 V-2
