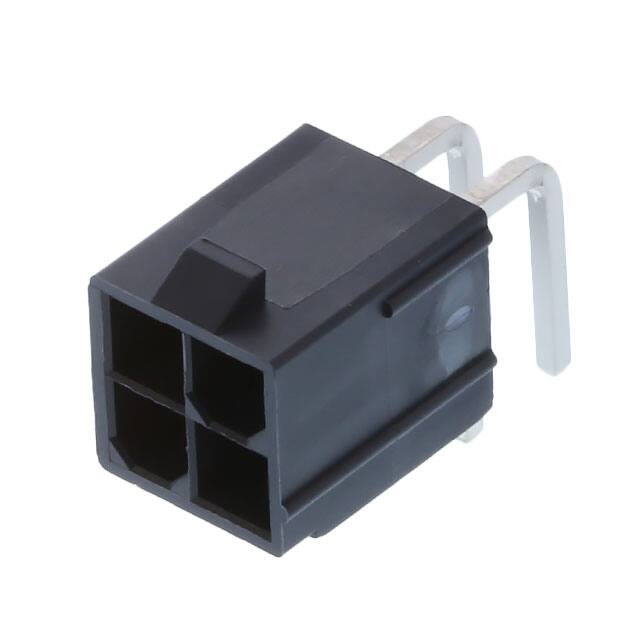

1724480004

Specifications

Contact Length Post

0.142 3.60mm

Contact Finish Thickness Mating

100.0μin 2.54μm

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.378 9.60mm

Pitch Mating

0.165 4.20mm

Contact Shape

Square

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-2

Style

Board to Cable/Wire

Insulation Color

Black

Empty Shell

NO

Özellikler

Board Lock, Glow Wire Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Type

Male Pin

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Materials

Brass

Row Spacing Mating

0.165 (4.20mm)

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Sıra Sayısı

2

Filter Feature

NO

Terminal

Solder

Fastening Type

Locking Ramp

Connector Type

Header

Fabrika Tedarik Süresi

21 Weeks

Mixed Contacts

NO

Ambalaj

Tray

Pozisyon Sayısı

4

Seri

Mini-Fit Jr 172448

Yayın Yılı

2014

Montaj Tipi

Through Hole, Right Angle

Din Conformance

NO

Contact Finish Mating

Tin

Mil Conformance

NO

Applications

General Purpose, Industrial, Telecommunications

Shrouding

Shrouded - 4 Wall
