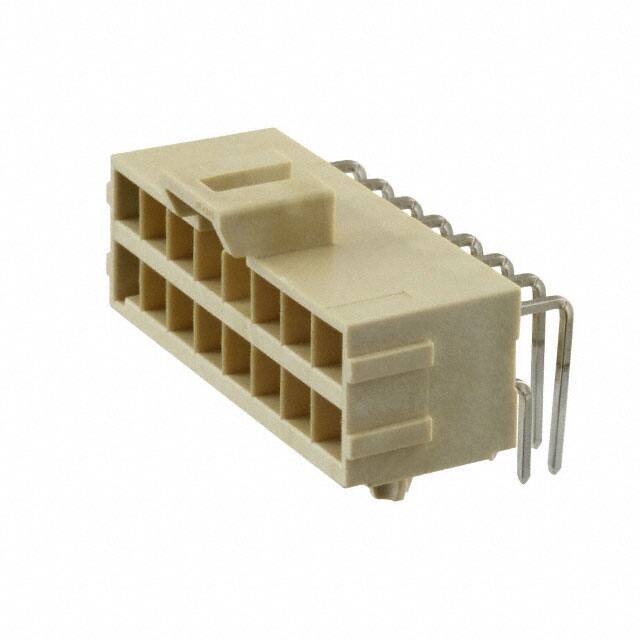

1723162216

Specifications

Sıra Sayısı

2

Terminal

Solder

Fastening Type

Latch Holder

Connector Type

Header

HTS Kodu

8536.69.40.30

Fabrika Tedarik Süresi

16 Weeks

Pozisyon Sayısı

16

Ambalaj

Bulk

Montaj

Through Hole

Yayın Yılı

2015

Seri

Ultra-Fit 172316

Montaj Tipi

Through Hole, Right Angle

Çalışma Sıcaklığı

-40°C~120°C

Contact Finish Mating

Gold

Shrouding

Shrouded - 4 Wall

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Length Post

0.126 3.20mm

Contact Shape

Square

Pitch Mating

0.138 3.50mm

Insulation Height

0.534 13.56mm

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Insulation Color

Natural

Kurşunsuz Kodu

yes

Özellikler

Board Guide

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Contact Type

Male Pin

Contact Finish Thickness Post

60.0μin 1.52μm

Row Spacing Mating

0.181 (4.60mm)

Contact Materials

Copper Alloy

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Nominal Gerilim

400V
