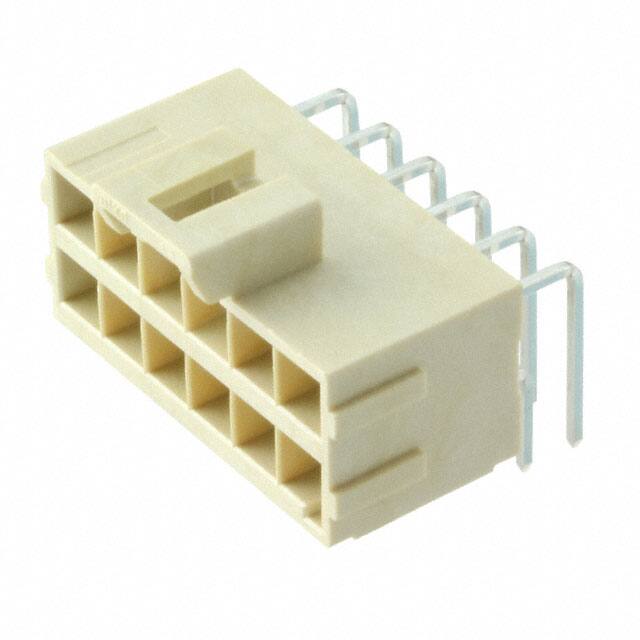

1723162112

Specifications

Pozisyon Sayısı

12

Montaj

Through Hole

Ambalaj

Bulk

Terminal

Solder

Fastening Type

Latch Holder

Sıra Sayısı

2

Fabrika Tedarik Süresi

13 Weeks

Connector Type

Header

HTS Kodu

8536.69.40.30

Contact Finish Mating

Tin

Shrouding

Shrouded - 4 Wall

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Montaj Tipi

Through Hole, Right Angle

Yayın Yılı

2015

Seri

Ultra-Fit 172316

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Insulation Color

Natural

Contact Shape

Square

Pitch Mating

0.138 3.50mm

Insulation Height

0.534 13.56mm

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.126 3.20mm

Contact Finish Thickness Mating

60.0μin 1.52μm

ECCN Kodu

EAR99

Row Spacing Mating

0.181 (4.60mm)

Contact Materials

Copper Alloy

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Type

Male Pin

Nominal Gerilim

400V

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Özellikler

Board Guide

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All
