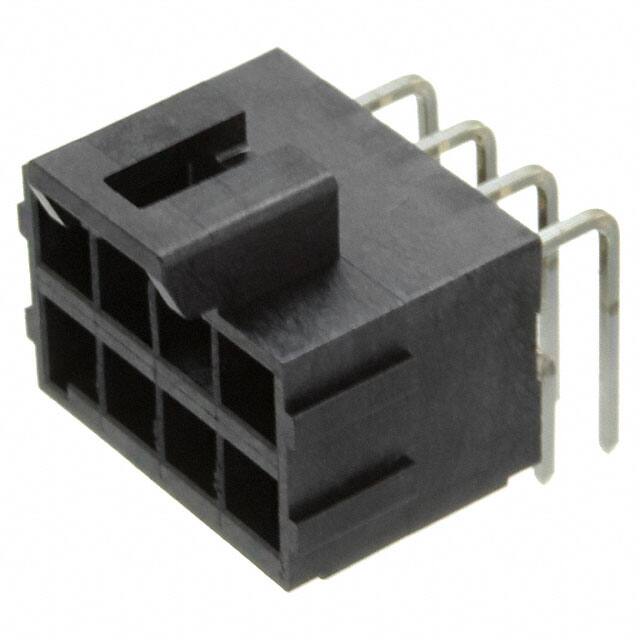

1723161308

Specifications

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Seri

Ultra-Fit 172316

Nominal Gerilim

400V

Çalışma Sıcaklığı

-40°C~120°C

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Shape

Square

Contact Finish Mating

Gold

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Insulation Color

Black

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Özellikler

Board Guide

Fastening Type

Latch Holder

Insulation Height

0.534 13.56mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

8

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant
