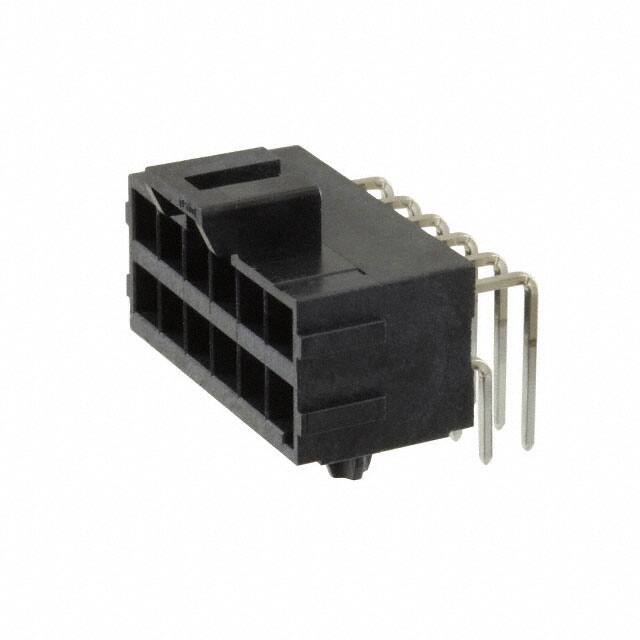

1723161212

Specifications

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Terminal

Solder

Contact Finish Post

Tin

Çalışma Sıcaklığı

-40°C~120°C

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

13 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Nominal Gerilim

400V

Seri

Ultra-Fit 172316

Montaj Tipi

Through Hole, Right Angle

Iec Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Mating

Gold

Connector Type

Header

Row Spacing Mating

0.181 (4.60mm)

Additional Feature

LATCHED

Yayın Yılı

2015

Empty Shell

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Özellikler

Board Guide

Mixed Contacts

NO

Insulation Color

Black

Sıra Sayısı

2

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO
