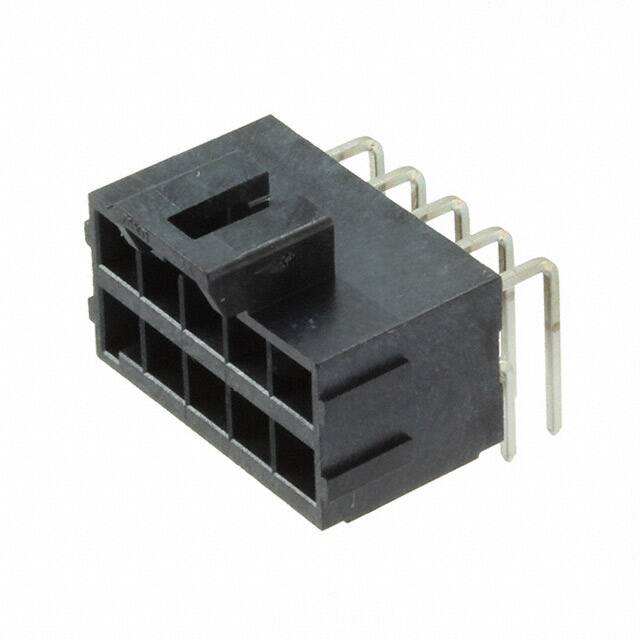

1723161210

Specifications

Insulation Color

Black

Sıra Sayısı

2

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Özellikler

Board Guide

Pitch Mating

0.138 3.50mm

Insulation Height

0.534 13.56mm

Pozisyon Sayısı

10

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Nominal Gerilim

400V

Seri

Ultra-Fit 172316

Montaj Tipi

Through Hole, Right Angle

Shrouding

Shrouded - 4 Wall

Terminal

Solder

Contact Finish Post

Tin

Çalışma Sıcaklığı

-40°C~120°C

Fabrika Tedarik Süresi

13 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.181 (4.60mm)

Yayın Yılı

2015

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Gold
