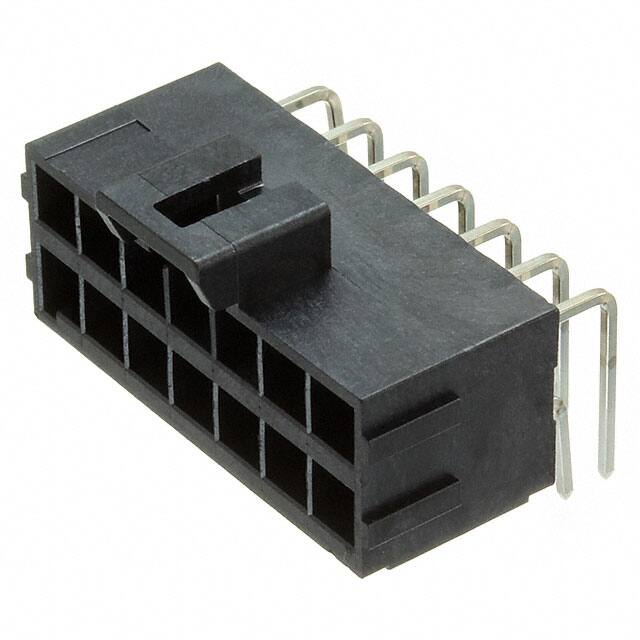

1723161114

Specifications

Parça Durumu

Active

Contact Type

Male Pin

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.534 13.56mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

14

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Özellikler

Board Guide

Sıra Sayısı

2

Insulation Color

Black

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Tin

Row Spacing Mating

0.181 (4.60mm)

Yayın Yılı

2015

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

HTS Kodu

8536.69.40.30

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-40°C~105°C

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Seri

Ultra-Fit 172316

Nominal Gerilim

400V

Montaj Tipi

Through Hole, Right Angle
