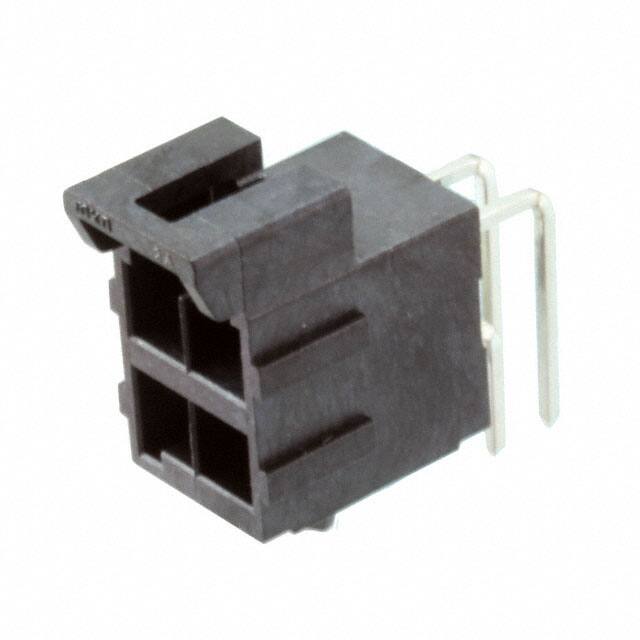

1723161104

Specifications

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.138 3.50mm

Insulation Height

0.534 13.56mm

Pozisyon Sayısı

4

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Özellikler

Board Guide

Sıra Sayısı

2

Insulation Color

Black

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Tin

Row Spacing Mating

0.181 (4.60mm)

Yayın Yılı

2015

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Shrouding

Shrouded - 4 Wall

Terminal

Solder

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

14 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Nominal Gerilim

400V

Seri

Ultra-Fit 172316

Montaj Tipi

Through Hole, Right Angle
