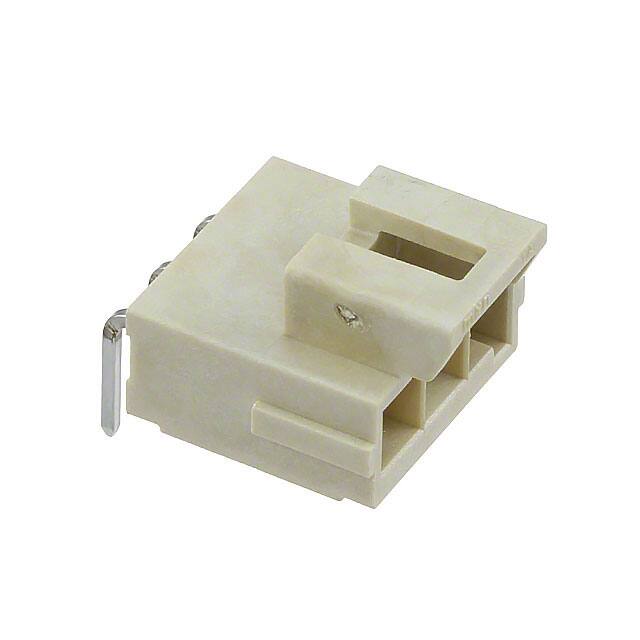

1723102203

Specifications

Fastening Type

Latch Holder

Özellikler

Board Guide

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Insulation Color

Natural

Sıra Sayısı

1

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Type

Male Pin

Number Of Positions Loaded

All

Pozisyon Sayısı

3

Ul Flammability Code

94V-0

Insulation Height

0.353 8.96mm

Pitch Mating

0.138 3.50mm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Çalışma Sıcaklığı

-40°C~120°C

Seri

Ultra-Fit 172310

Nominal Gerilim

400V

Iec Conformance

NO

Montaj

Through Hole

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Gold

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

15.0μin 0.38μm
