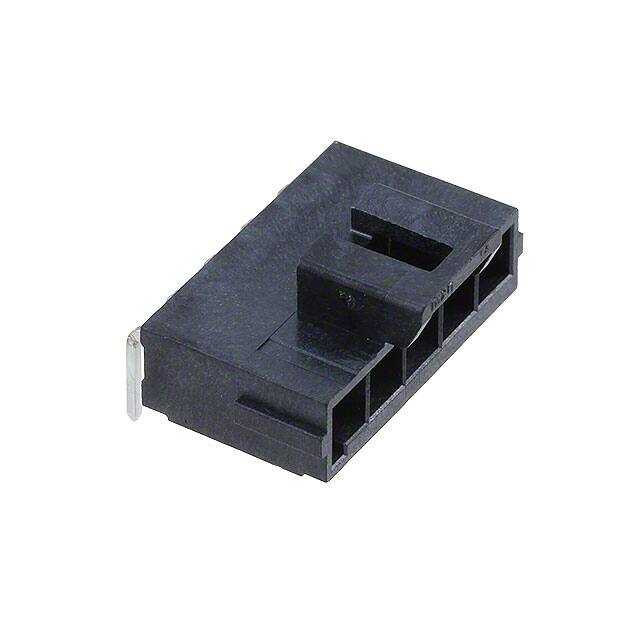

1723101205

Specifications

Fastening Type

Latch Holder

Özellikler

Board Guide

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Insulation Color

Black

Sıra Sayısı

1

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Parça Durumu

Active

Contact Type

Male Pin

Number Of Positions Loaded

All

Pozisyon Sayısı

5

Ul Flammability Code

94V-0

Insulation Height

0.353 8.96mm

Pitch Mating

0.138 3.50mm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Insulation Materials

Liquid Crystal Polymer (LCP)

Terminal

Solder

Contact Finish Post

Tin

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-40°C~120°C

Seri

Ultra-Fit 172310

Nominal Gerilim

400V

Montaj

Through Hole

Iec Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Mating

Gold

Connector Type

Header

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Shape

Square
