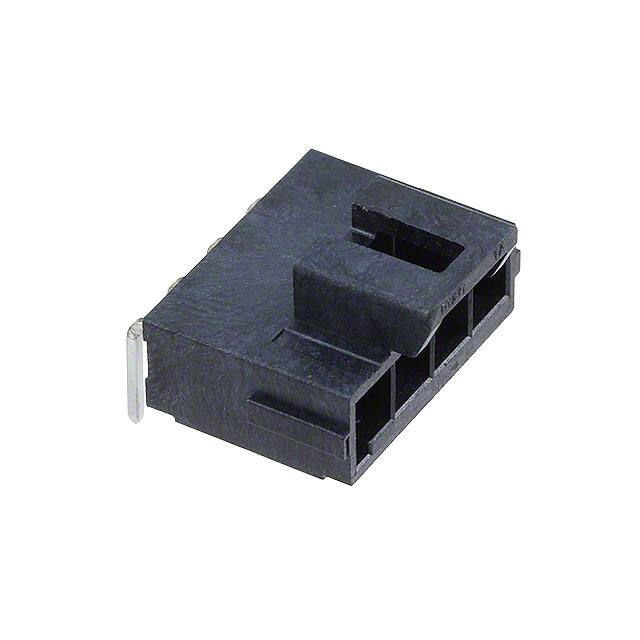

1723101204

Specifications

Yayın Yılı

2015

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Shape

Square

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Gold

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Seri

Ultra-Fit 172310

Nominal Gerilim

400V

Montaj Tipi

Through Hole, Right Angle

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-40°C~120°C

Fabrika Tedarik Süresi

7 Weeks

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Height

0.353 8.96mm

REACH Uyumluluk Kodu

unknown

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

4

Parça Durumu

Active

Contact Type

Male Pin

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Insulation Color

Black

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Özellikler

Board Guide
