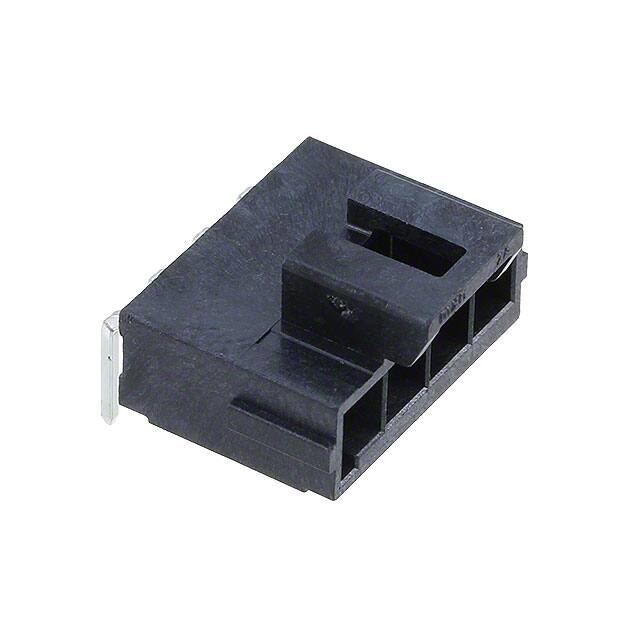

1723101104

Specifications

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Contact Type

Male Pin

Parça Durumu

Active

Pozisyon Sayısı

4

Pitch Mating

0.138 3.50mm

Insulation Height

0.353 8.96mm

Özellikler

Board Guide

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Insulation Color

Black

Sıra Sayısı

1

Mixed Contacts

NO

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Yayın Yılı

2015

Empty Shell

NO

Additional Feature

ULTRA-FIT; POLARIZED; SHROUDED

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Fabrika Tedarik Süresi

13 Weeks

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-40°C~105°C

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

Iec Conformance

NO

Nominal Gerilim

400V

Seri

Ultra-Fit 172310
