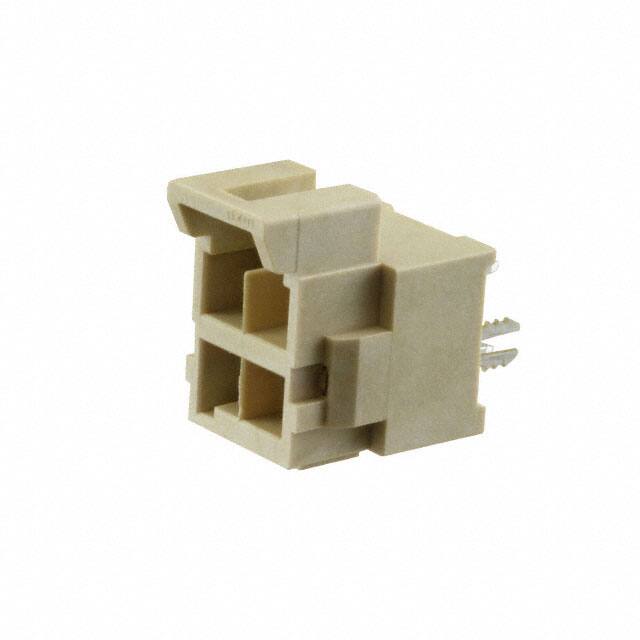

1722992104

Specifications

Insulation Color

Natural

Sıra Sayısı

2

Özellikler

Board Guide, Solder Retention

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Stack Height Mating

26.99mm

Pozisyon Sayısı

4

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Contact Type

Male Pin

Parça Durumu

Active

Montaj Tipi

Through Hole

Montaj

Through Hole

Nominal Gerilim

400V

Seri

Ultra-Fit 172299

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Fabrika Tedarik Süresi

16 Weeks

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-40°C~105°C

Shrouding

Shrouded - 4 Wall

Terminal

Solder

Contact Shape

Square

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Finish Thickness Post

60.0μin 1.52μm

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
