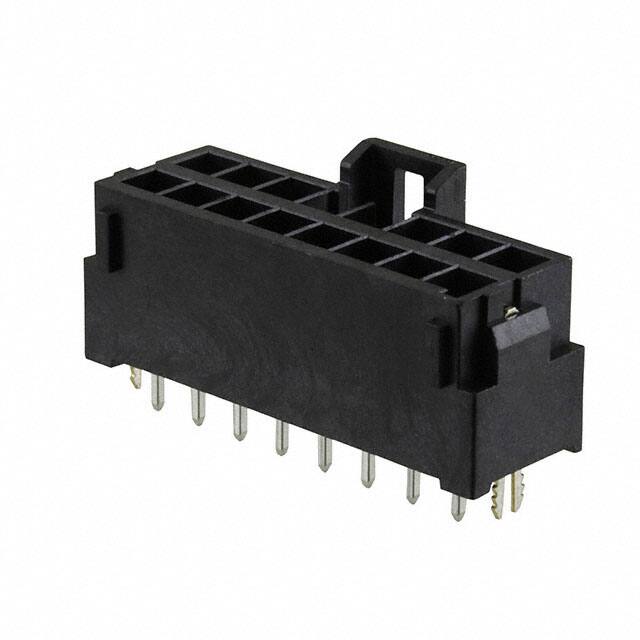

1722991216

Specifications

Contact Finish Mating

Gold

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Contact Finish Thickness Post

60.0μin 1.52μm

HTS Kodu

8536.69.40.30

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-40°C~120°C

Terminal

Solder

Contact Finish Post

Tin

Shrouding

Shrouded - 4 Wall

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole

Seri

Ultra-Fit 172299

Nominal Gerilim

400V

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

16

Kurşunsuz Kodu

yes

Stack Height Mating

26.99mm

Style

Board to Cable/Wire

Özellikler

Board Guide, Solder Retention

Fastening Type

Latch Holder

Sıra Sayısı

2

Insulation Color

Black
