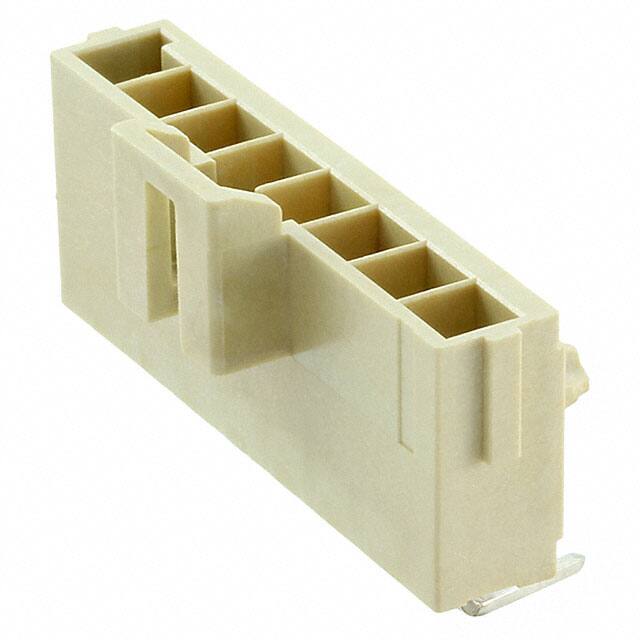

1722991114

Specifications

Nominal Gerilim

400V

Seri

Ultra-Fit 172299

Montaj Tipi

Through Hole

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Fabrika Tedarik Süresi

7 Weeks

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Shrouding

Shrouded - 4 Wall

Terminal

Solder

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

HTS Kodu

8536.69.40.30

Contact Finish Thickness Post

60.0μin 1.52μm

Row Spacing Mating

0.181 (4.60mm)

Yayın Yılı

2015

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Tin

Sıra Sayısı

2

Insulation Color

Black

Fastening Type

Latch Holder

Özellikler

Board Guide, Solder Retention

Style

Board to Cable/Wire

Stack Height Mating

26.99mm

Kurşunsuz Kodu

yes

Pozisyon Sayısı

14

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin
