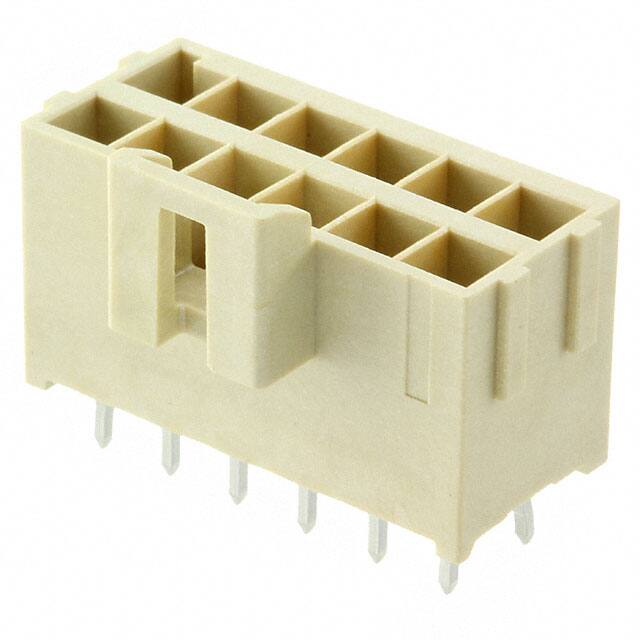

1722982112

Specifications

Stack Height Mating

26.99mm

Style

Board to Cable/Wire

Özellikler

Board Guide

Fastening Type

Latch Holder

Insulation Color

Natural

Sıra Sayısı

2

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

12

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Kinked Pin, Solder

Shrouding

Shrouded - 4 Wall

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole

Seri

Ultra-Fit 172298

Nominal Gerilim

400V

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

HTS Kodu

8536.69.40.30
