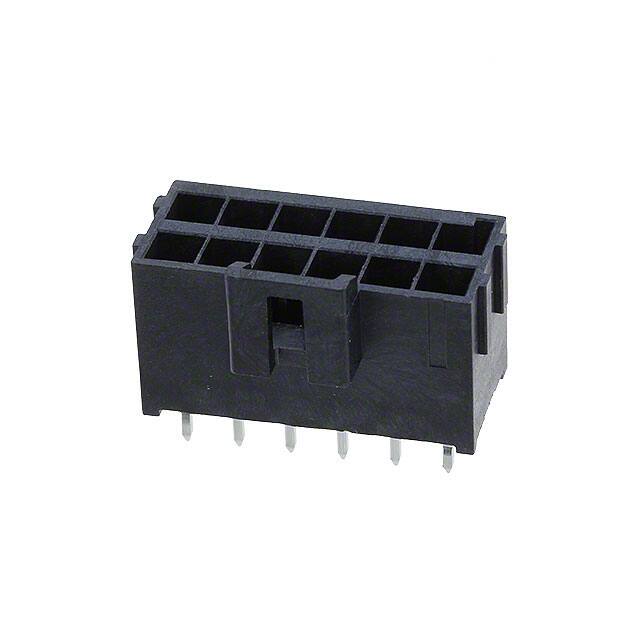

1722981212

Specifications

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Çalışma Sıcaklığı

-40°C~120°C

Contact Finish Post

Tin

Terminal

Kinked Pin, Solder

Shrouding

Shrouded - 4 Wall

Montaj

Through Hole

Montaj Tipi

Through Hole

Seri

Ultra-Fit 172298

Nominal Gerilim

400V

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Akım Değeri

11A

Yükseklik

14.5mm

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Shape

Square

HTS Kodu

8536.69.40.30

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Özellikler

Board Guide

Fastening Type

Latch Holder

Stack Height Mating

26.99mm

Style

Board to Cable/Wire

Insulation Color

Black

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Pozisyon Sayısı

12

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm
