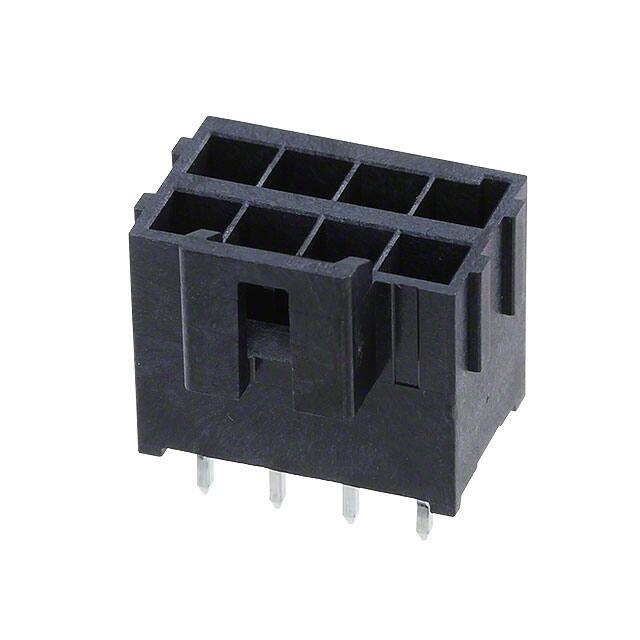

1722981108

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Fabrika Tedarik Süresi

14 Weeks

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-40°C~105°C

Shrouding

Shrouded - 4 Wall

Terminal

Kinked Pin, Solder

Montaj Tipi

Through Hole

Nominal Gerilim

400V

Seri

Ultra-Fit 172298

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Yayın Yılı

2015

Row Spacing Mating

0.181 (4.60mm)

Özellikler

Board Guide

Fastening Type

Latch Holder

Style

Board to Cable/Wire

Stack Height Mating

26.99mm

Insulation Color

Black

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Contact Type

Male Pin

Parça Durumu

Active

Pozisyon Sayısı

8

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm
