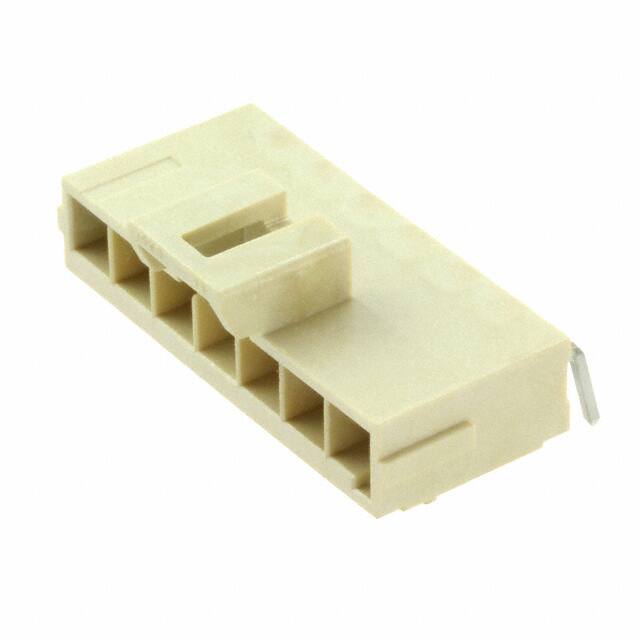

1722872107

Specifications

Insulation Color

Natural

Sıra Sayısı

1

Fastening Type

Latch Holder

Özellikler

Board Guide, Solder Retention

Stack Height Mating

26.99mm

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Pozisyon Sayısı

7

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Type

Male Pin

Number Of Positions Loaded

All

Seri

Ultra-Fit 172287

Nominal Gerilim

400V

Montaj

Through Hole

Montaj Tipi

Through Hole

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

16 Weeks

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

HTS Kodu

8536.69.40.30

Yayın Yılı

2014

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Tin
