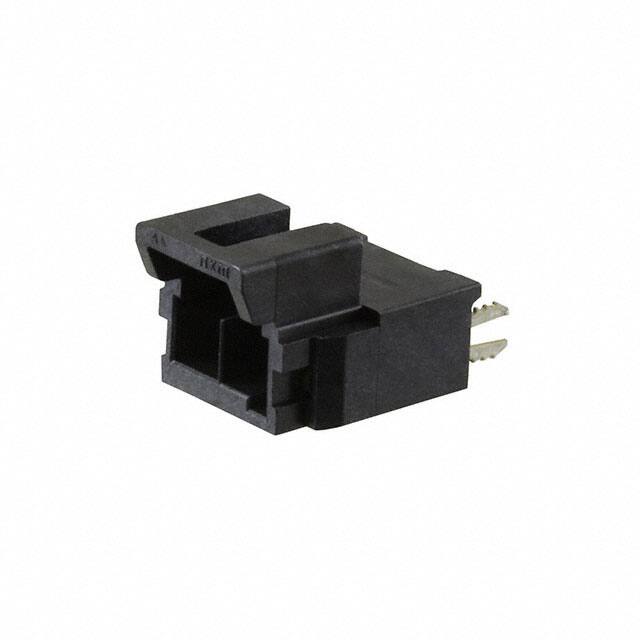

1722871102

Specifications

Çalışma Sıcaklığı

-40°C~105°C

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Terminal

Solder

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Fabrika Tedarik Süresi

14 Weeks

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Montaj Tipi

Through Hole

Iec Conformance

NO

Nominal Gerilim

400V

Seri

Ultra-Fit 172287

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Yayın Yılı

2014

Empty Shell

NO

Additional Feature

POLARIZED

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Stack Height Mating

26.99mm

Özellikler

Board Guide, Solder Retention

Fastening Type

Latch Holder

Mixed Contacts

NO

Insulation Color

Black

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Male Pin

Parça Durumu

Active

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.138 3.50mm
