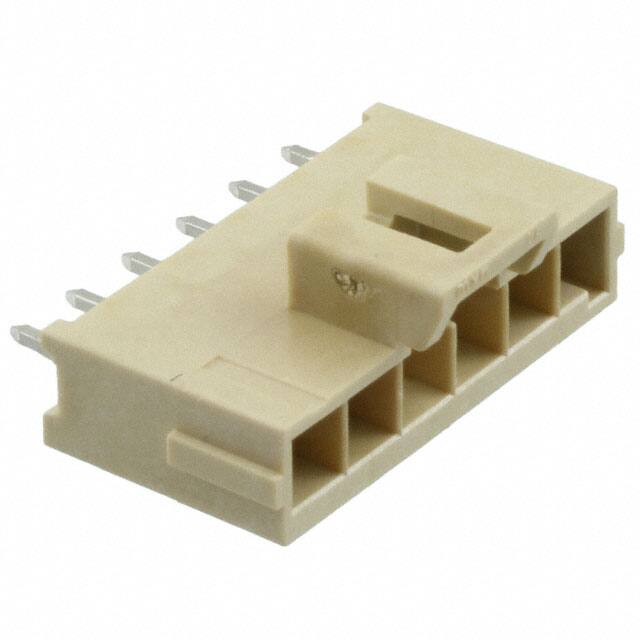

1722862306

Specifications

Connector Type

Header

Contact Finish Mating

Gold

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Shape

Square

Yayın Yılı

2014

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

Çalışma Sıcaklığı

-40°C~120°C

Contact Finish Post

Tin

Terminal

Kinked Pin, Solder

Shrouding

Shrouded - 4 Wall

Montaj

Through Hole

Montaj Tipi

Through Hole

Seri

Ultra-Fit 172286

Nominal Gerilim

600V

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Pozisyon Sayısı

6

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

Özellikler

Board Guide

Fastening Type

Latch Holder

Stack Height Mating

26.99mm

Style

Board to Board or Cable

Sıra Sayısı

1

Insulation Color

Natural
