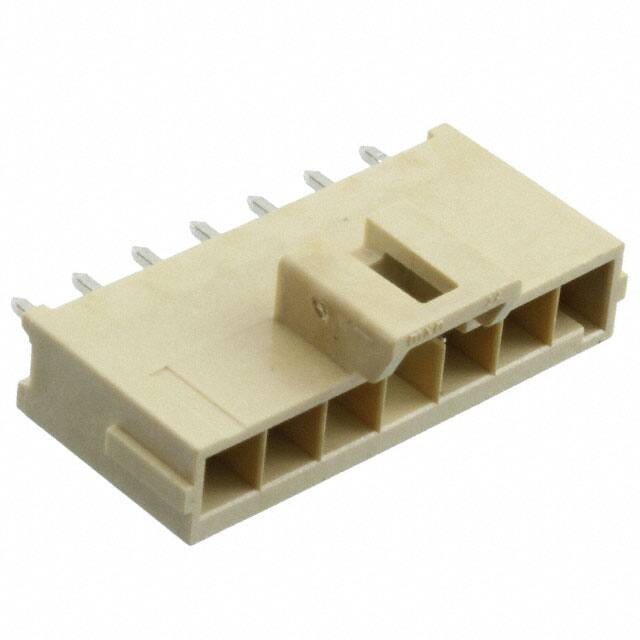

1722862107

Specifications

Shrouding

Shrouded - 4 Wall

Contact Finish Post

Tin

Terminal

Kinked Pin, Solder

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

13 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.126 3.20mm

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Nominal Gerilim

600V

Seri

Ultra-Fit 172286

Montaj Tipi

Through Hole

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Connector Type

Header

Contact Finish Mating

Tin

Yayın Yılı

2014

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Post

60.0μin 1.52μm

Style

Board to Board or Cable

Stack Height Mating

26.99mm

Fastening Type

Latch Holder

Özellikler

Board Guide

Sıra Sayısı

1

Insulation Color

Natural

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm

Pozisyon Sayısı

7
