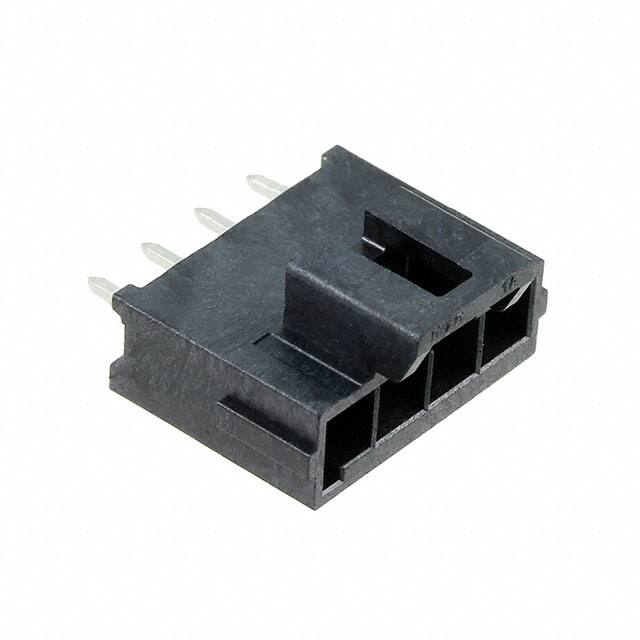

1722861204

Specifications

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

4

Stack Height Mating

26.99mm

Style

Board to Board or Cable

Özellikler

Board Guide

Fastening Type

Latch Holder

Mixed Contacts

NO

Insulation Color

Black

Sıra Sayısı

1

Connector Type

Header

Contact Finish Mating

Gold

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Empty Shell

NO

Yayın Yılı

2014

Additional Feature

POLARIZED

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-40°C~120°C

Contact Finish Post

Tin

Terminal

Kinked Pin, Solder

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Iec Conformance

NO
