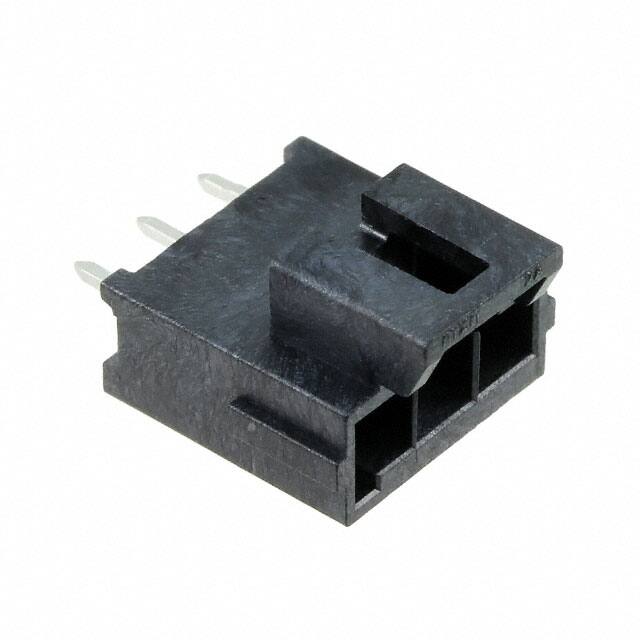

1722861203

Specifications

Sıra Sayısı

1

Insulation Color

Black

Style

Board to Board or Cable

Stack Height Mating

26.99mm

Özellikler

Board Guide

Fastening Type

Latch Holder

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm

Pozisyon Sayısı

3

Number Of Positions Loaded

All

Contact Type

Male Pin

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Montaj Tipi

Through Hole

Nominal Gerilim

600V

Seri

Ultra-Fit 172286

Çalışma Sıcaklığı

-40°C~120°C

Shrouding

Shrouded - 4 Wall

Terminal

Kinked Pin, Solder

Contact Finish Post

Tin

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Fabrika Tedarik Süresi

13 Weeks

ECCN Kodu

EAR99

Yayın Yılı

2014

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Finish Mating

Gold

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
