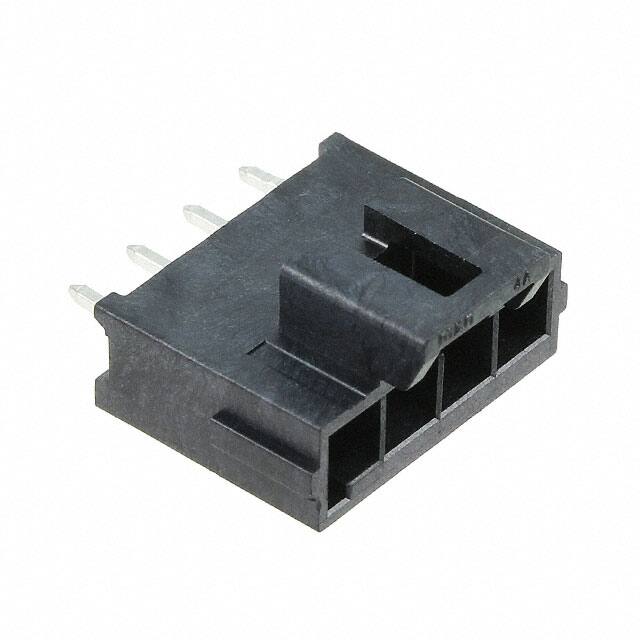

1722861104

Specifications

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Nominal Gerilim

600V

Seri

Ultra-Fit 172286

Montaj Tipi

Through Hole

Shrouding

Shrouded - 4 Wall

Terminal

Kinked Pin, Solder

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

13 Weeks

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Yayın Yılı

2015

Contact Shape

Square

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Finish Thickness Post

60.0μin 1.52μm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Contact Finish Mating

Tin

Connector Type

Header

Sıra Sayısı

1

Insulation Color

Black

Style

Board to Board or Cable

Stack Height Mating

26.99mm

Fastening Type

Latch Holder

Özellikler

Board Guide

Pitch Mating

0.138 3.50mm

Insulation Height

0.465 11.80mm

Pozisyon Sayısı

4

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)
