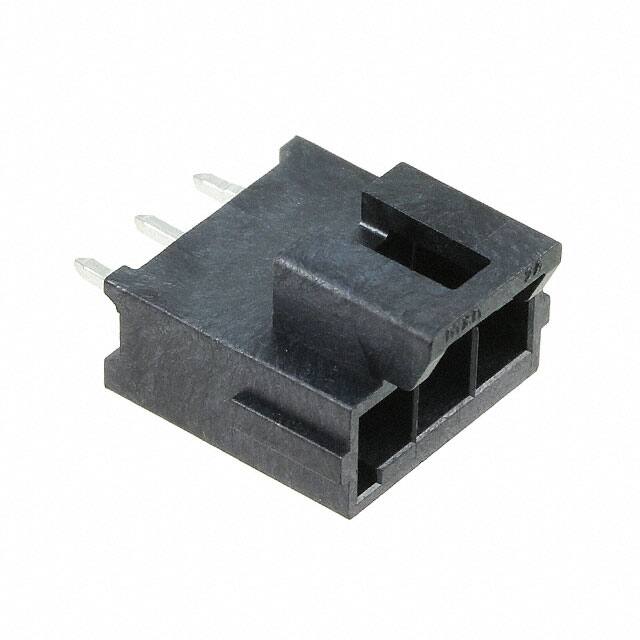

1722861103

Specifications

Kurşunsuz Kodu

yes

Stack Height Mating

26.99mm

Style

Board to Board or Cable

Özellikler

Board Guide

Fastening Type

Latch Holder

Mixed Contacts

NO

Sıra Sayısı

1

Insulation Color

Black

Contact Type

Male Pin

Number Of Positions Loaded

All

Parça Durumu

Active

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.465 11.80mm

Pitch Mating

0.138 3.50mm

Pozisyon Sayısı

3

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Kinked Pin, Solder

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Contact Materials

Copper Alloy

Contact Length Post

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Iec Conformance

NO

Montaj Tipi

Through Hole

Seri

Ultra-Fit 172286

Nominal Gerilim

600V

Contact Finish Mating

Tin

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Empty Shell

NO

Yayın Yılı

2014

Contact Finish Thickness Post

60.0μin 1.52μm
