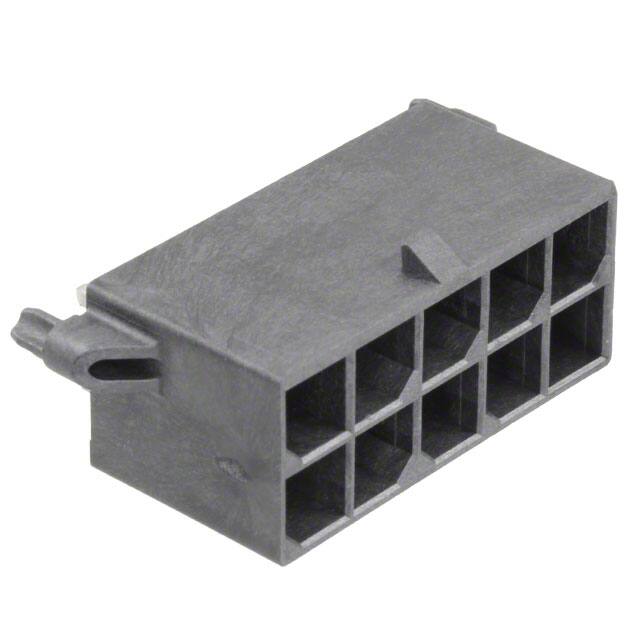

1720651010

Specifications

Insulation Height

0.583 14.80mm

Plating Thickness

30μin

Reliability

COMMERCIAL

Seri

Mega-Fit

Contact Finish Thickness Post

100.0μin 2.54μm

Body Depth

0.583 inch

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Length Termination

0.147 inch

Contact Materials

Copper

Contact Finish Post

Tin

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Contact Type

Male Pin

Operating Temperature Min

-40°C

Applications

Automotive, General Purpose, Industrial, Telecommunications

Insulation Color

Black

Mixed Contacts

YES

Montaj Tipi

Through Hole

Contact Length Post

0.147 3.73mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Board Mounting Option

SPLIT BOARD LOCK

Pozisyon Sayısı

10

Ambalaj

Tray

Number Of Positions Loaded

All

Özellikler

Board Guide, Glow Wire Compliant

Sıra Sayısı

2

Terminal

Solder

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2013

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.224 5.70mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Locking Ramp

Mounting Option1

LATCH

Reference Standard

UL, CSA

Contact Resistance

5mOhm
