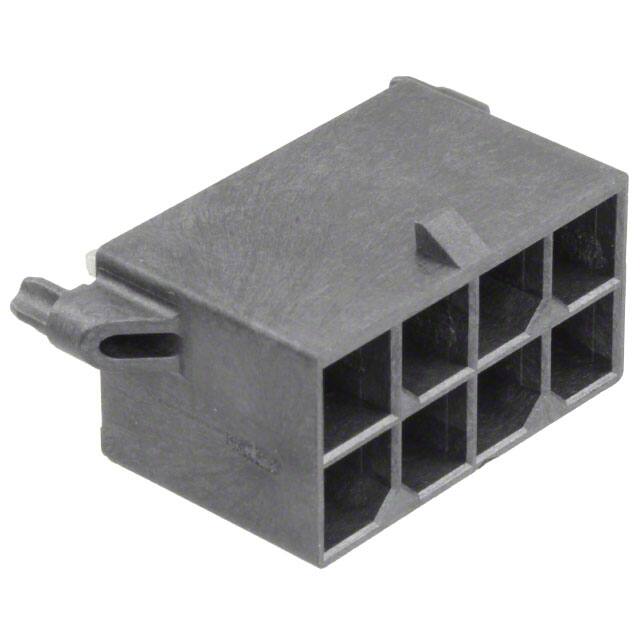

1720651008

Specifications

Contact Finish Thickness Post

100.0μin 2.54μm

Plating Thickness

30μin

Insulation Height

0.583 14.80mm

Seri

Mega-Fit

Reliability

COMMERCIAL

Contact Materials

Copper

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Length Termination

0.147 inch

Insulation Resistance

1000000000Ohm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Mixed Contacts

YES

Insulation Color

Black

Contact Length Post

0.147 3.73mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Through Hole

Contact Type

Male Pin

Operating Temperature Min

-40°C

Applications

Automotive, General Purpose, Industrial, Telecommunications

Connector Type

Header

Number Of Positions Loaded

All

Board Mounting Option

SPLIT BOARD LOCK

Ambalaj

Tray

Pozisyon Sayısı

8

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

9 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Terminal

Solder

Özellikler

Board Guide, Glow Wire Compliant

Sıra Sayısı

2

Yayın Yılı

2013

Pitch Mating

0.224 5.70mm

Mounting Option1

LATCH

Fastening Type

Locking Ramp

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Shape

Square
