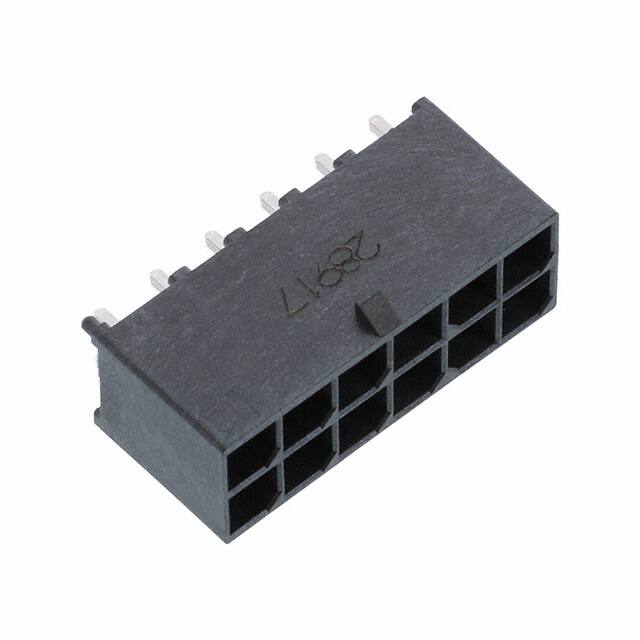

Specifications
- HTS Kodu
- 8536.69.40.30
- Contact Finish Thickness Post
- 100.0μin 2.54μm
- Insulation Height
- 0.583 14.80mm
- Seri
- Mega-Fit
- Contact Materials
- Copper
- Contact Finish Post
- Tin
- Contact Finish Mating
- Gold
- Insulation Color
- Black
- Montaj Tipi
- Through Hole
- Contact Length Post
- 0.147 3.73mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Connector Type
- Header
- Contact Type
- Male Pin
- Applications
- Automotive, General Purpose, Industrial, Telecommunications
- Number Of Positions Loaded
- All
- Pozisyon Sayısı
- 12
- ECCN Kodu
- EAR99
- Ambalaj
- Tray
- Shrouding
- Shrouded - 4 Wall
- Sıra Sayısı
- 2
- Özellikler
- Board Guide, Glow Wire Compliant
- Fabrika Tedarik Süresi
- 10 Weeks
- Material Flammability Rating
- UL94 V-0
- Parça Durumu
- Active
- Terminal
- Solder
- Yayın Yılı
- 2017
- Pitch Mating
- 0.224 5.70mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Locking Ramp
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Style
- Board to Cable/Wire
- Row Spacing Mating
- 0.224 (5.70mm)
- Contact Shape
- Square
