Specifications
- Operating Temperature Max
- 105°C
- Reference Standard
- UL, CSA
- Contact Resistance
- 5mOhm
- Style
- Board to Cable/Wire
- Row Spacing Mating
- 0.224 (5.70mm)
- Contact Shape
- Square
- Contact Finish Thickness Mating
- 15.0μin 0.38μm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Locking Ramp
- Mounting Option1
- LATCH
- Pitch Mating
- 0.224 5.70mm
- Yayın Yılı
- 2013
- Özellikler
- Board Guide, Glow Wire Compliant
- Sıra Sayısı
- 2
- Terminal
- Solder
- Parça Durumu
- Active
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 10 Weeks
- Shrouding
- Shrouded - 4 Wall
- Pozisyon Sayısı
- 6
- ECCN Kodu
- EAR99
- Ambalaj
- Tray
- Board Mounting Option
- SPLIT BOARD LOCK
- Number Of Positions Loaded
- All

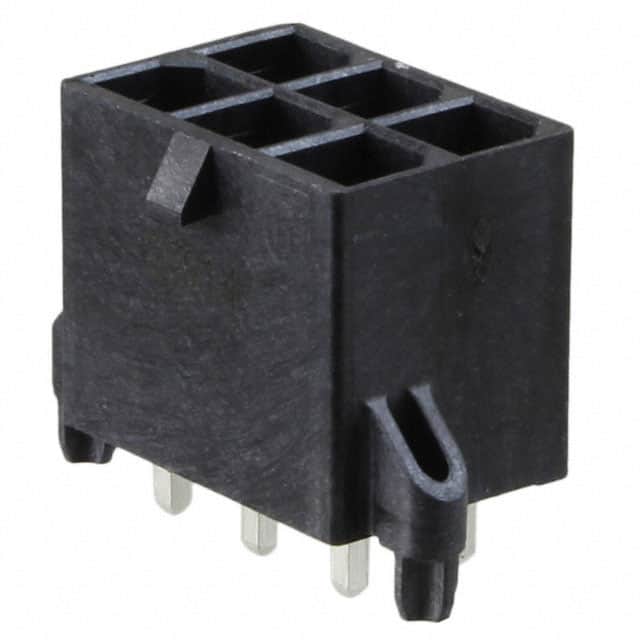

- Connector Type
- Header
- Contact Type
- Male Pin
- Operating Temperature Min
- -40°C
- Applications
- Automotive, General Purpose, Industrial, Telecommunications
- Montaj Tipi
- Through Hole
- Contact Length Post
- 0.147 3.73mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Color
- Black
- Mixed Contacts
- YES
- Number Of Conductors
- ONE
- RoHS Durumu
- ROHS3 Compliant
- Insulation Resistance
- 1000000000Ohm
- Length Termination
- 0.147 inch
- Contact Finish Mating
- Gold
- Kurşunsuz Kodu
- yes
- Contact Finish Post
- Tin
