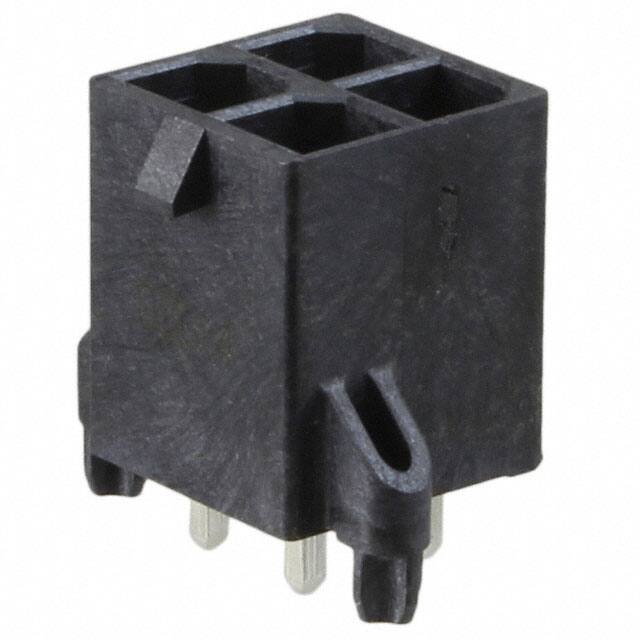

Specifications
- Contact Finish Mating
- Gold
- Kurşunsuz Kodu
- yes
- Contact Materials
- Copper
- Contact Finish Post
- Tin
- Insulation Height
- 0.583 14.80mm
- Plating Thickness
- 15μin
- Reliability
- COMMERCIAL
- Seri
- Mega-Fit
- Contact Finish Thickness Post
- 100.0μin 2.54μm
- Body Depth
- 0.583 inch
- Connector Type
- Header
- Contact Type
- Male Pin
- Applications
- Automotive, General Purpose, Industrial, Telecommunications
- Insulation Color
- Black
- Mixed Contacts
- YES
- Montaj Tipi
- Through Hole
- Contact Length Post
- 0.147 3.73mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Number Of Conductors
- ONE
- Insulation Resistance
- 1000000000Ohm
- RoHS Durumu
- ROHS3 Compliant
- Sıra Sayısı
- 2
- Özellikler
- Board Guide, Glow Wire Compliant
- Terminal
- Solder
- Parça Durumu
- Active
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 11 Weeks
- Yayın Yılı
- 2013
- Shrouding
- Shrouded - 4 Wall
- Board Mounting Option
- SPLIT BOARD LOCK
- Pozisyon Sayısı
- 4
- Ambalaj
- Tray
- Number Of Positions Loaded
- All
- Reference Standard
- UL, CSA
- Contact Resistance
- 5mOhm
- Operating Temperature Max
- 105°C
- Contact Finish Thickness Mating
- 15.0μin 0.38μm
- Style
- Board to Cable/Wire
- Row Spacing Mating
- 0.224 (5.70mm)
- Contact Shape
- Square
