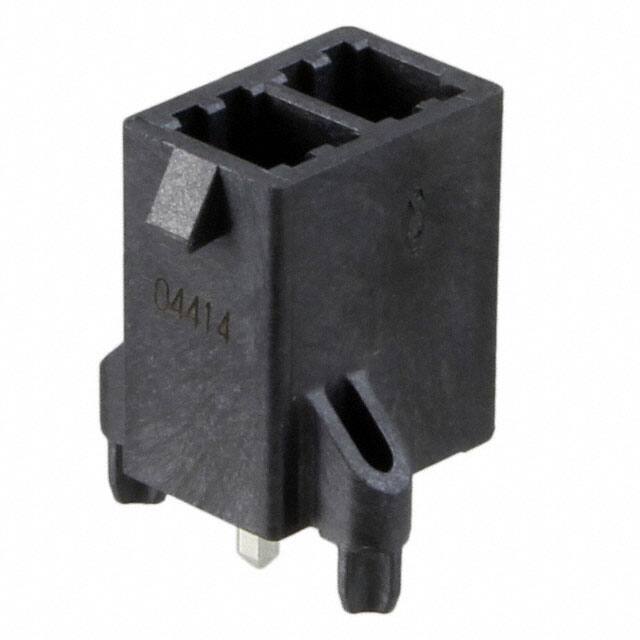

Specifications
- Shrouding
- Shrouded - 4 Wall
- Yayın Yılı
- 2013
- Özellikler
- Board Guide, Glow Wire Compliant
- Fabrika Tedarik Süresi
- 8 Weeks
- Material Flammability Rating
- UL94 V-0
- Parça Durumu
- Active
- Terminal
- Solder
- Number Of Positions Loaded
- All
- Pozisyon Sayısı
- 2
- ECCN Kodu
- EAR99
- Ambalaj
- Tray
- Board Mounting Option
- SPLIT BOARD LOCK
- Contact Shape
- Square
- Row Spacing Mating
- 0.224 (5.70mm)
- Style
- Board to Cable/Wire
- Contact Finish Thickness Mating
- 15.0μin 0.38μm
- Operating Temperature Max
- 105°C
- Reference Standard
- UL, CSA
- Contact Resistance
- 5mOhm
- JESD-609 Kodu
- e3
- Fastening Type
- Locking Ramp
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mounting Option1
- LATCH
- Contact Finish Post
- Tin
- Body Length Or Diameter
- 0.606 inch
- Contact Materials
- Copper
- Length Termination
- 0.147 inch
- Kurşunsuz Kodu
- yes
- Contact Finish Mating
- Gold
- Body Depth
- 0.583 inch
- HTS Kodu
- 8536.69.40.30
- Contact Finish Thickness Post
- 100.0μin 2.54μm
- Seri
- Mega-Fit
- Reliability
- COMMERCIAL
- Insulation Height
- 0.583 14.80mm
- Plating Thickness
- 15μin
- Montaj Tipi
- Through Hole
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Contact Length Post
- 0.147 3.73mm
- Mixed Contacts
- YES
