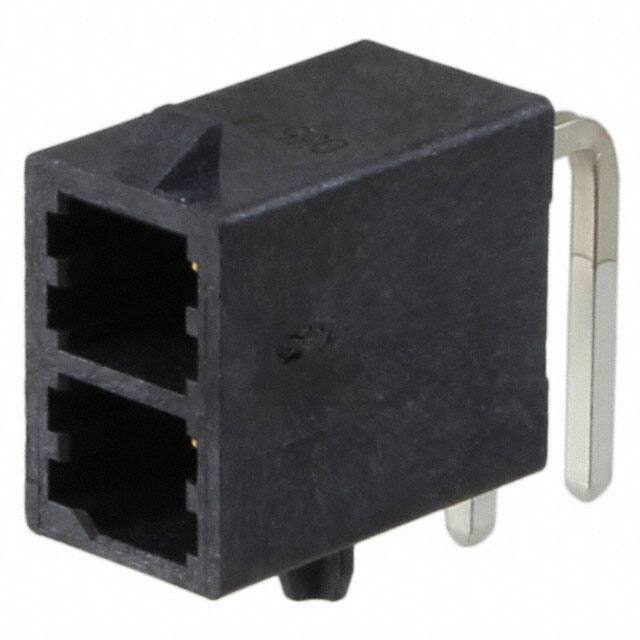

1720640002

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Locking Ramp

Style

Board to Cable/Wire

Row Spacing Mating

0.224 (5.70mm)

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Number Of Positions Loaded

All

Mil Conformance

NO

Ambalaj

Tray

ECCN Kodu

EAR99

Pozisyon Sayısı

2

Shrouding

Shrouded - 4 Wall

Yayın Yılı

2013

Terminal

Solder

Ul Flammability Code

94V-0

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

11 Weeks

Özellikler

Board Guide, Glow Wire Compliant

RoHS Durumu

ROHS3 Compliant

Empty Shell

NO

Contact Length Post

0.142 3.60mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Mixed Contacts

NO

Contact Type

Male Pin

Applications

Automotive, General Purpose, Industrial, Telecommunications

Connector Type

Header

Din Conformance

NO

Contact Finish Thickness Post

100.0μin 2.54μm

Iec Conformance

NO

HTS Kodu

8536.69.40.30

Seri

Mega-Fit

Insulation Height

0.572 14.53mm

Contact Finish Post

Tin

Filter Feature

NO

Contact Materials

Copper

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold
