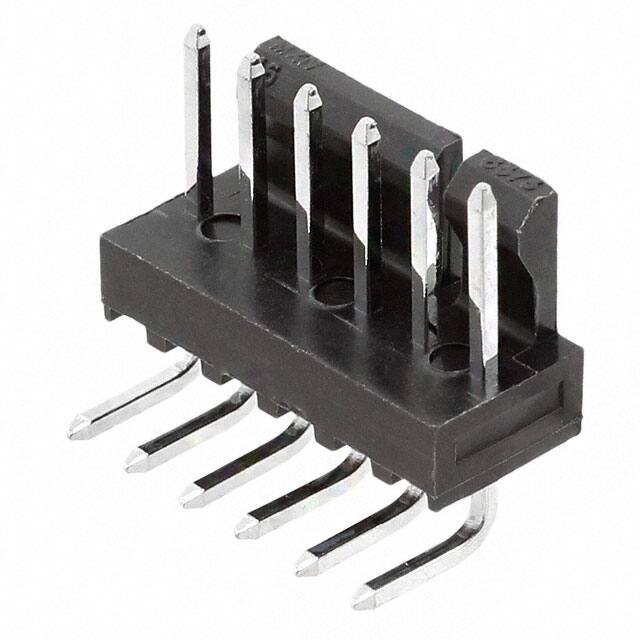

1718573006

Specifications

Connector Type

Header

Yayın Yılı

2014

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

13 Weeks

Parça Durumu

Active

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

60.0μin 1.52μm

Sıra Sayısı

1

Pozisyon Sayısı

6

Contact Type

Male Pin

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Insulation Height

0.250 6.35mm

Contact Length Post

0.100 2.54mm

Seri

KK 171857

Shrouding

Shrouded - 1 Wall

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Tin

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square
