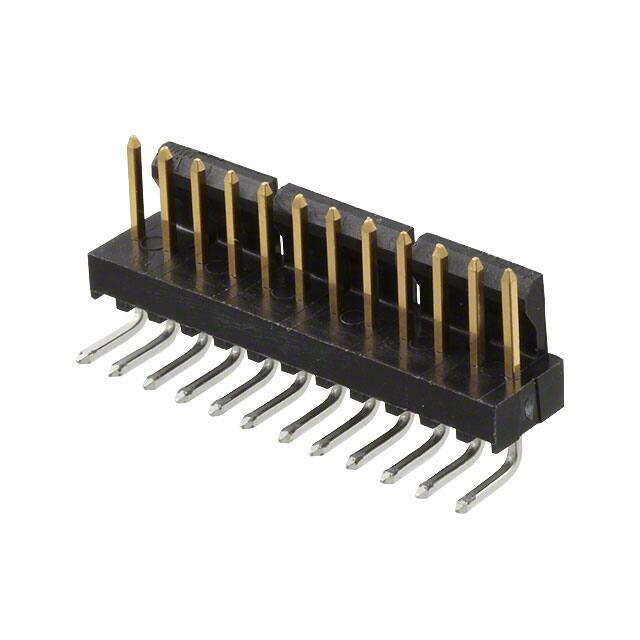

1718571012

Specifications

Shrouding

Shrouded - 1 Wall

Seri

KK 171857

Operating Temperature Max

80°C

Contact Length Post

0.100 2.54mm

Insulation Height

0.250 6.35mm

Material Flammability Rating

UL94 V-2

Fastening Type

Friction Lock

Insulation Color

Black

Contact Finish Post

Tin

Contact Shape

Square

Reference Standard

UL, CSA

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch

Style

Board to Board or Cable

Contact Finish Mating

Gold

Contact Lengthmating

0.265 6.73mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Terminal Adımı

2.54mm

Contact Type

Male Pin

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Pozisyon Sayısı

12

Sıra Sayısı

1

Body Depth

0.442 inch

Contact Finish Thickness Mating

15.0μin 0.38μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder
