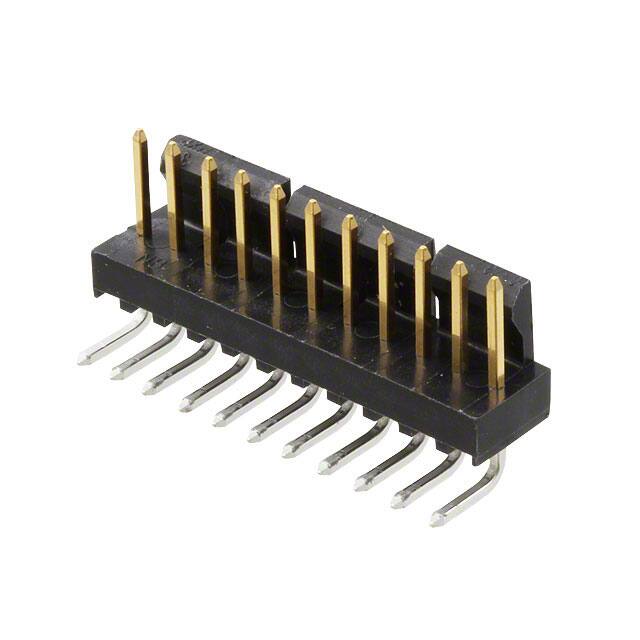

1718571011

Specifications

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Contact Finish Mating

Gold

Contact Lengthmating

0.265 6.73mm

Style

Board to Board or Cable

Reference Standard

UL, CSA

Contact Shape

Square

Insulation Height

0.250 6.35mm

Contact Finish Post

Tin

Fastening Type

Friction Lock

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Operating Temperature Max

80°C

Seri

KK 171857

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.100 2.54mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.442 inch

Contact Finish Thickness Post

100.0μin 2.54μm

Montaj Tipi

Through Hole, Right Angle

Contact Materials

Brass

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Mounting Option1

LOCKING

Terminal Adımı

2.54mm

Sıra Sayısı

1

Pozisyon Sayısı

11

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Connector Type

Header

Yayın Yılı

2013

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

11 Weeks

Pcb Contact Pattern

RECTANGULAR
