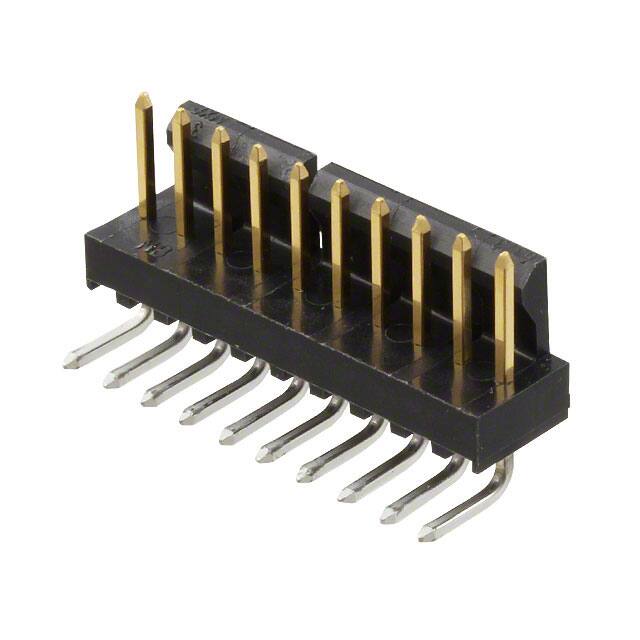

1718571010

Specifications

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Gold

Style

Board to Board or Cable

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Reference Standard

UL, CSA

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Insulation Height

0.250 6.35mm

Contact Length Post

0.100 2.54mm

Seri

KK 171857

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.442 inch

Sıra Sayısı

1

Reliability

COMMERCIAL

Pozisyon Sayısı

10

Contact Type

Male Pin

Mounting Option1

LOCKING

Terminal Adımı

2.54mm

Applications

Automotive, General Purpose, Medical, Telecommunications

Yayın Yılı

2013

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Ambalaj

Bulk

Number Of Positions Loaded

All
