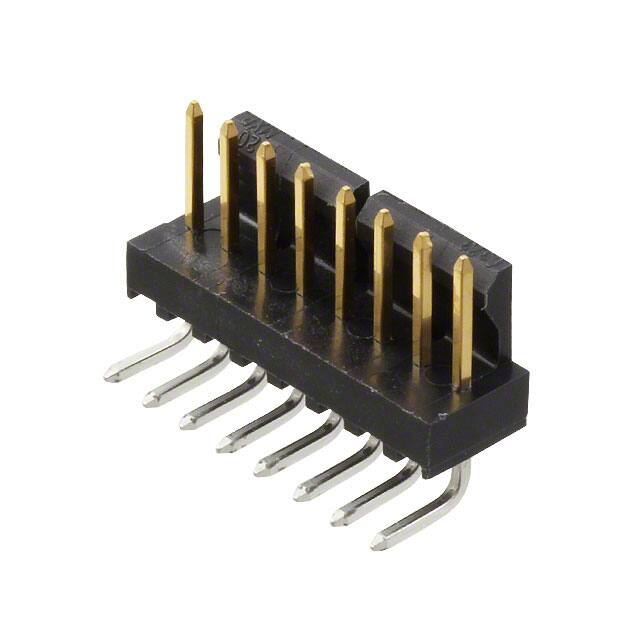

1718571008

Specifications

Seri

KK 171857

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.100 2.54mm

Insulation Height

0.250 6.35mm

Contact Finish Post

Tin

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Reference Standard

UL, CSA

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Gold

Style

Board to Board or Cable

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Ambalaj

Bulk

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Yayın Yılı

2013

Connector Type

Header

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon

Mounting Option1

LOCKING

Contact Type

Male Pin

Terminal Adımı

2.54mm

Sıra Sayısı

1

Pozisyon Sayısı

8

Reliability

COMMERCIAL

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.442 inch

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle
