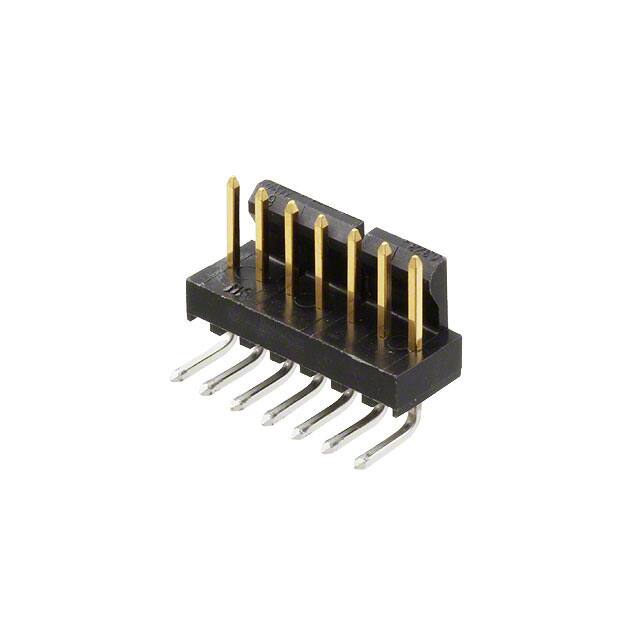

1718571007

Specifications

Ambalaj

Bulk

Number Of Positions Loaded

All

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

11 Weeks

Pcb Contact Pattern

RECTANGULAR

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Sıra Sayısı

1

Pozisyon Sayısı

7

Reliability

COMMERCIAL

Mounting Option1

LOCKING

Contact Type

Male Pin

Terminal Adımı

2.54mm

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.442 inch

Contact Length Post

0.100 2.54mm

Seri

KK 171857

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Insulation Height

0.250 6.35mm

ECCN Kodu

EAR99

Contact Shape

Square

Reference Standard

UL, CSA

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Gold

Style

Board to Board or Cable
