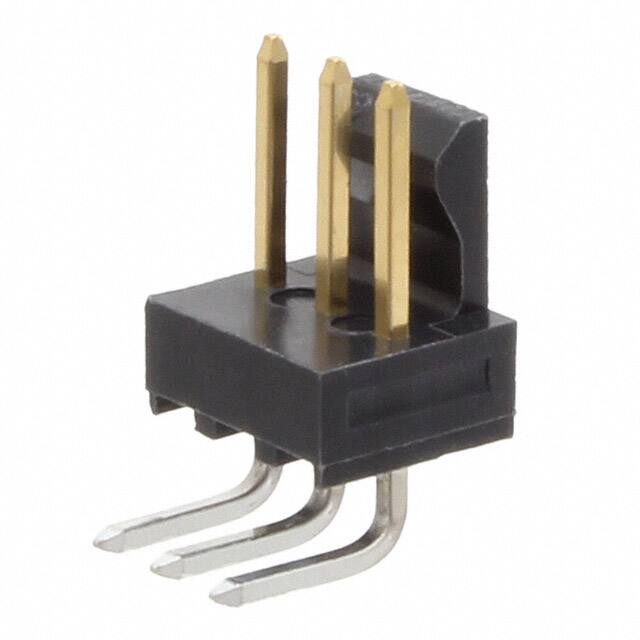

1718571003

Specifications

Lead Length

2.54mm

Contact Finish Post

Tin

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Glow Wire Compliant

Compliant

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Reference Standard

UL, CSA

Pitch Mating

0.100 2.54mm

Halogen Free

Low Halogen

Connector Type

Header

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Ambalaj

Bulk

Contact Gender

Male

Montaj Tipi

Through Hole, Right Angle

Contact Materials

Brass

Orientation

Right Angle

Insulation Height

0.250 6.35mm

Fastening Type

Friction Lock

Seri

KK 171857

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.100 2.54mm

Body Breadth

0.25 inch

Number Of Conductors

ONE

Contact Lengthmating

0.265 6.73mm

Style

Board to Board or Cable

Min. Çalışma Sıcaklığı

-40°C

Contact Shape

Square

Reach Svhc

No SVHC

Number Of Pcb Rows

1

Yayın Yılı

2013

Montaj

Through Hole

Housing Material

Nylon

Number Of Contacts

3

Fabrika Tedarik Süresi

12 Weeks

Maks. Çalışma Sıcaklığı

105°C

Pcb Contact Pattern

RECTANGULAR
