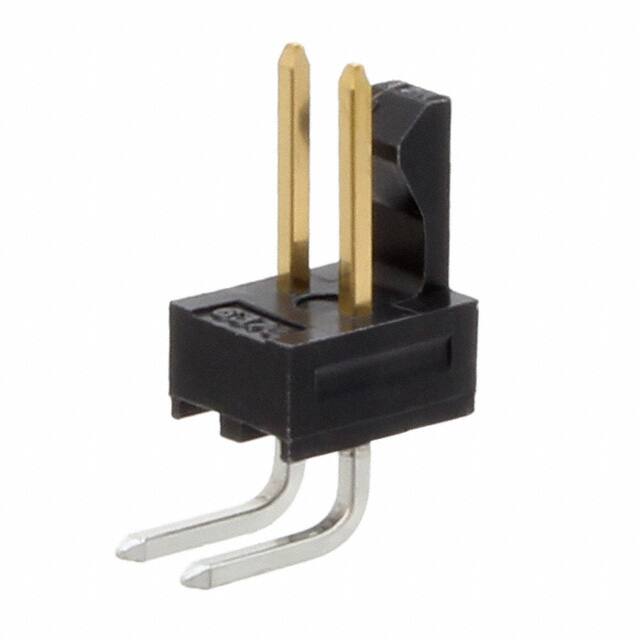

1718571002

Specifications

Reach Svhc

No SVHC

Contact Shape

Square

Number Of Conductors

ONE

Style

Board to Board or Cable

Min. Çalışma Sıcaklığı

-40°C

Contact Lengthmating

0.265 6.73mm

Shrouding

Shrouded - 1 Wall

Seri

KK 171857

Contact Length Post

0.100 2.54mm

Insulation Height

0.250 6.35mm

Fastening Type

Friction Lock

Contact Type

Male Pin

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Sıra Sayısı

1

Mating Post Length

6.73mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Akım Değeri

4A

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Finish Thickness Post

100.0μin 2.54μm

Pcb Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

105°C

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

Flammability Rating

UL94 V-2

Nominal Gerilim

250V

Number Of Pcb Rows

1

Number Of Contacts

2

Housing Material

Nylon

Montaj

Through Hole

Yayın Yılı

2013

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Glow Wire Compliant

Compliant

Contact Finish Mating

Gold

Lead Length

2.54mm

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Contact Finish Post

Tin
