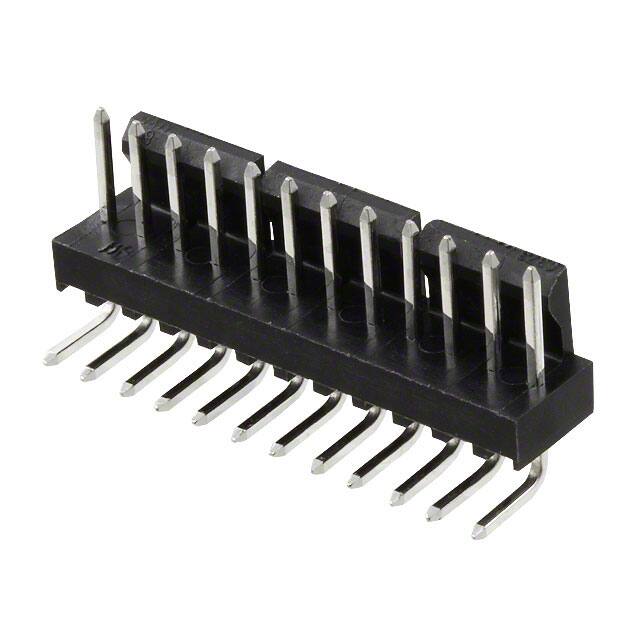

1718570012

Specifications

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Body Depth

0.442 inch

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Pozisyon Sayısı

12

Reliability

COMMERCIAL

Sıra Sayısı

1

Terminal Adımı

2.54mm

Mounting Option1

LOCKING

Contact Type

Male Pin

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Yayın Yılı

2013

Applications

Automotive, General Purpose, Medical, Telecommunications

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Style

Board to Board or Cable

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Contact Shape

Square

Reference Standard

UL, CSA

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Insulation Height

0.250 6.35mm

Contact Length Post

0.100 2.54mm
