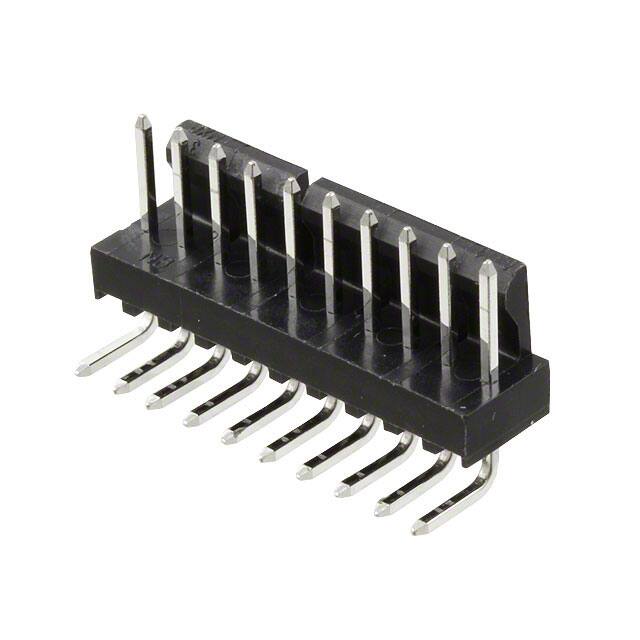

1718570010

Specifications

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Halogen Free

Low Halogen

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Montaj Tipi

Through Hole, Right Angle

Contact Materials

Brass

Contact Gender

Male

Plating Thickness

60μin

Pozisyon Sayısı

10

Orientation

Right Angle

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Lead Length

2.54mm

ECCN Kodu

EAR99

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N

Glow Wire Compliant

Compliant

Reference Standard

UL, CSA

Montaj

Through Hole

Housing Material

Nylon

Yayın Yılı

2013

Number Of Pcb Rows

1

Number Of Positions Loaded

All

Flammability Rating

UL94 V-2

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Maks. Çalışma Sıcaklığı

105°C

Pcb Contact Pattern

RECTANGULAR

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Finish Thickness Post

60.0μin 1.52μm

Body Depth

0.442 inch

Mating Post Length

6.73mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Akım Değeri

4A
